2025-06-19T14:51:00
permalink Post: 11906087
OK, I promised some
informed speculation
when I got back, so here goes:
Disclaimer: never worked the 787, so my detailed knowledge is a bit lacking.
First off, this is perplexing - especially if the RAT was deployed. There is no 'simple' explanation that I can come up with.
GEnx-1B engines have been exceptionally reliable, and the GE carbon composite fan blades are very robust and resistant to bird strike damage (about 15 years after the GE90 entry into service, I remember a GE boast that no GE90 (carbon composite) fan blades had needed to be scrapped due to damage (birdstrike, FOD, etc. - now that was roughly another 15 years ago, so is probably no longer true, but it shows just how robust the carbon composite blades are - far better than the more conventional titanium fan blades).
Not saying it wasn't somehow birdstrike related, just that is very unlikely (then again, all the other explanations I can come up with are also very unlikely
).
Using improper temp when calculating TO performance - after some near misses, Boeing added logic that cross-compares multiple total temp probes - aircraft TAT (I think the 787 uses a single, dual element probe for aircraft TAT, but stand to be corrected) and the temp measured by the engine inlet probes - and puts up a message if they disagree by more than a few degree tolerance - so very, very unlikely.
N1 power setting is somewhat less prone to measurement and power setting errors than EPR (N1 is a much simpler measurement than Rolls EPR) - although even with EPR, problems on both engines at the same time is almost unheard of.
The Auto Thrust (autothrottle) function 'falls asleep' at 60 knots - and doesn't unlock until one of several things happens - 250 knots, a set altitude AGL is exceeded (I'm thinking 3,000 ft. but the memory is fuzzy), thrust levers are moved more than a couple of degrees, or the mode select is changed (memory says that last one is inhibited below 400 ft. AGL). So an Auto Thrust malfunction is also extremely unlikely. Further, a premature thrust lever retard would not explain a RAT deployment.
TO does seem to be very late in the takeoff role - even with a big derate, you still must accelerate fast enough to reach V1 with enough runway to stop - so there is still considerable margin if both engines are operating normally. That makes me wonder if they had the correct TO power setting - but I'm at a loss to explain how they could have fouled that up with all the protections that the 787 puts on that.
If one engine did fail after V1, it's conceivable that they shut down the wrong engine - but since this happened literally seconds after takeoff, it begs the question why they would be in a big hurry to shut down the engine. Short of an engine fire, there is nothing about an engine failure that requires quick action to shut it down - no evidence of an engine fire, and even with an engine fire, you normally have minutes to take action - not seconds.

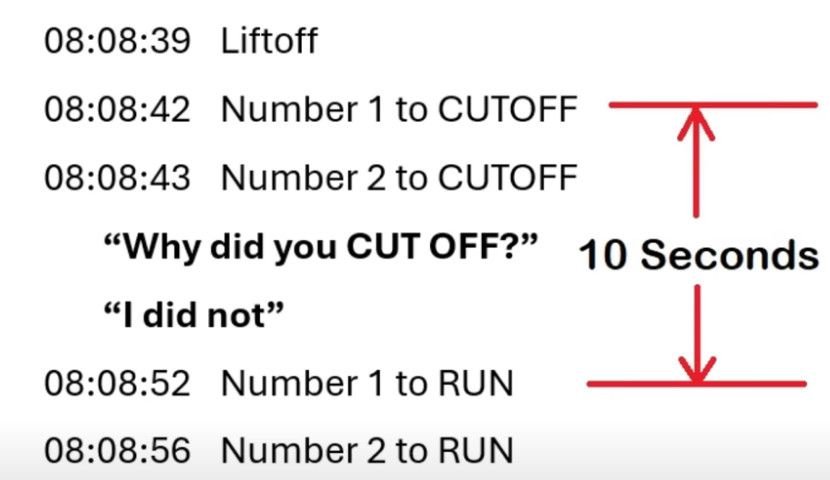

The one thing I keep thinking about is someone placing both fuel switches to cutoff immediately after TO. Yes, it's happened before (twice - 767s in the early 1980s), but the root causes of that mistake are understood and have been corrected. Hard to explain how it could happen ( unless, God forbid, it was intentional ).
Disclaimer: never worked the 787, so my detailed knowledge is a bit lacking.
First off, this is perplexing - especially if the RAT was deployed. There is no 'simple' explanation that I can come up with.
GEnx-1B engines have been exceptionally reliable, and the GE carbon composite fan blades are very robust and resistant to bird strike damage (about 15 years after the GE90 entry into service, I remember a GE boast that no GE90 (carbon composite) fan blades had needed to be scrapped due to damage (birdstrike, FOD, etc. - now that was roughly another 15 years ago, so is probably no longer true, but it shows just how robust the carbon composite blades are - far better than the more conventional titanium fan blades).
Not saying it wasn't somehow birdstrike related, just that is very unlikely (then again, all the other explanations I can come up with are also very unlikely
).
Using improper temp when calculating TO performance - after some near misses, Boeing added logic that cross-compares multiple total temp probes - aircraft TAT (I think the 787 uses a single, dual element probe for aircraft TAT, but stand to be corrected) and the temp measured by the engine inlet probes - and puts up a message if they disagree by more than a few degree tolerance - so very, very unlikely.
N1 power setting is somewhat less prone to measurement and power setting errors than EPR (N1 is a much simpler measurement than Rolls EPR) - although even with EPR, problems on both engines at the same time is almost unheard of.
The Auto Thrust (autothrottle) function 'falls asleep' at 60 knots - and doesn't unlock until one of several things happens - 250 knots, a set altitude AGL is exceeded (I'm thinking 3,000 ft. but the memory is fuzzy), thrust levers are moved more than a couple of degrees, or the mode select is changed (memory says that last one is inhibited below 400 ft. AGL). So an Auto Thrust malfunction is also extremely unlikely. Further, a premature thrust lever retard would not explain a RAT deployment.
TO does seem to be very late in the takeoff role - even with a big derate, you still must accelerate fast enough to reach V1 with enough runway to stop - so there is still considerable margin if both engines are operating normally. That makes me wonder if they had the correct TO power setting - but I'm at a loss to explain how they could have fouled that up with all the protections that the 787 puts on that.
If one engine did fail after V1, it's conceivable that they shut down the wrong engine - but since this happened literally seconds after takeoff, it begs the question why they would be in a big hurry to shut down the engine. Short of an engine fire, there is nothing about an engine failure that requires quick action to shut it down - no evidence of an engine fire, and even with an engine fire, you normally have minutes to take action - not seconds.
The one thing I keep thinking about is someone placing both fuel switches to cutoff immediately after TO. Yes, it's happened before (twice - 767s in the early 1980s), but the root causes of that mistake are understood and have been corrected. Hard to explain how it could happen ( unless, God forbid, it was intentional ).
Subjects: Bird Strike Engine Failure (All) Fuel (All) Fuel Cutoff Preliminary Report RAT (All) RAT (Deployment) V1 Wrong Engine
3 users liked this post.
2025-06-20T07:45:00
permalink Post: 11906669
"Both engines failed or shut off close to rotation" explains all of the evidence : it explains an unremarkable take-off roll, loss of lift, absence of pronounced yaw, loss of electrical power, loss of the ADS-B transponder, RAT deployment, the noise of the RAT banging into place and revving up, emergency signs lighting up, a possible mayday call reporting loss of thrust/power/lift, and a physically plausible glide from a little over 200 ft AAL to a crash site 50 feet (?) below aerodrome elevation.
It explains what we saw on the videos, what the witness reported, where the aircraft ended up, and the ensuing sudden catastrophe.
I don't believe we have evidence for anything else right now—I'd be happily corrected on that.
The EAFR will tell the story, but the reason for the crash will always remain a "mystery" because the B787 was not equipped with EPTPR's! ( E nhanced P ilot's T hought P rocess R ecorders)
I think AI171 will go down in history with MSR990 an MH370.
Subjects: ADSB AI171 EAFR Engine Failure (All) Engine Shutdown Mayday RAT (All) RAT (Deployment) Takeoff Roll
2025-06-21T14:46:00
permalink Post: 11907810
I was wondering what the cockpit jumpseat policy in Air India is? Is it known if someone was flying along in the cockpit?
Subjects: None
1 user liked this post.
2025-06-29T07:12:00
permalink Post: 11912832
How about giving the hamster in the wheel some rest again?
Subjects: None
6 users liked this post.
2025-06-29T10:57:00
permalink Post: 11912954
Subjects: None
1 user liked this post.
